Part 9: Too Much Information Center
Time to get down to some nitty gritty. In this part, we're going
to clean up the information center and I'm going to actually show you
how to test it to make sure it works. Pin-outs, voltages, the
works.
To start, pop off the back lights on the information center.
Simply take a small flat bladed screwdriver and gently push under one
side of the back light and the light will pop off.
Now you have just
the information center to deal with.

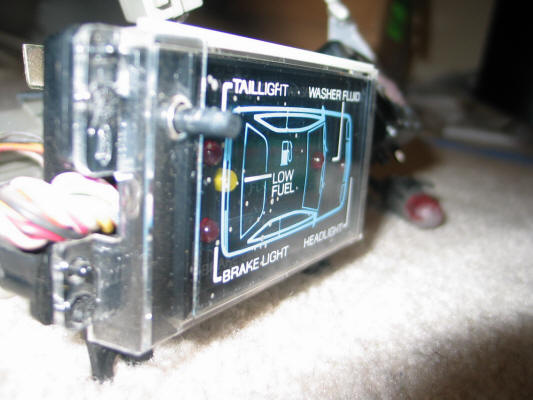

First, looking at the face,
the PO got some grey paint on it. I guess taping this off was too
much to ask for.
In the picture below you can see some splatter
drops of paint. Not much but it needs to go.

For this, I generally like to use some Turtle Wax paint rubbing and
polishing compounds:

The rubbing compound gets the paint off and the polishing compound
shines it up a bit.

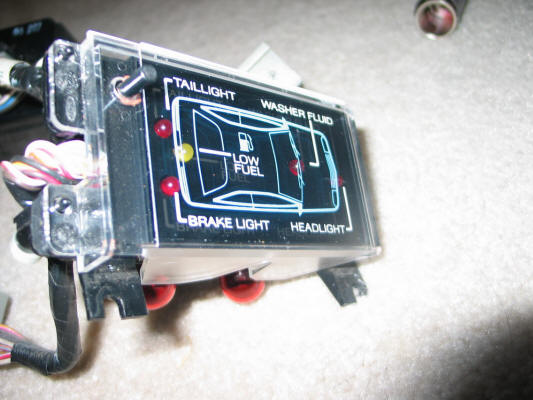

All better.
Now, on to testing. To test it we need the
pin out. There are two connectors coming from the unit. 13
total wires. Below is a description of those connectors (note the
red locking block in the center of each connector). The indicated
uses were pulled from the Ford Electrical and Vacuum Troubleshooting manual.

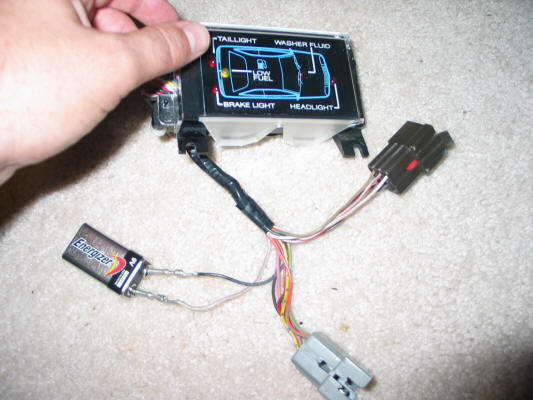

One very quick
test that can be done is to simply grab a 9v battery and hook it up.
9v positive goes to the White wire with Purple stripe. The Black
wire goes to the negative 9v terminal (ground).
To get the
wires out of the connector, you simply remove them or "de-pin" them from
the connector. There is a red block on the connector you first
need to push up and out from the sides with a pencil. Then there
are little internal tabs in the connector for each wire that an awl or
small screwdriver can be used to pull back and then the wire can be
pulled right out.

Hit the button. All the LEDs should light (I had to keep my
camera's flash off for this picture.).

At this point you're probably good to go if all your LEDs light.
This module I think is pretty dirt simple inside so i doubt much of
anything can go wrong. I didn't feel like opening it up since I
didn't have an issue. Maybe that's a write-up for another time
when these things start failing on people.

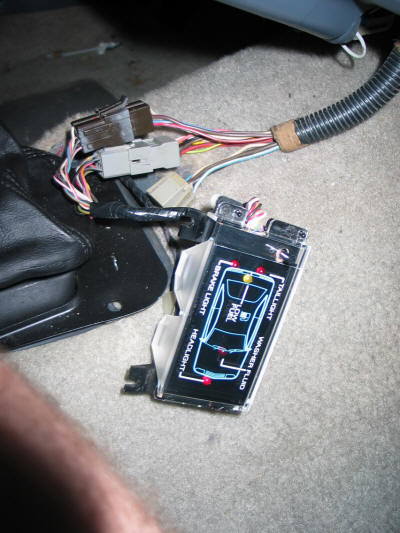

But I did feel like trying some other tests. I figured I could
hook it up to my car easily enough.

My car has almost no gas in it, immediately I got a "low fuel light".
I also pulled a front low beam head lamp. Cool, it's working!

This is where I get lost. If I put 9-12v to various wires I can
light up each LED individually. There are only 5 LEDs and 13
wires. Why so many wires? Even the Ford wiring manual
doesn't list all the wires on the brown connector. I had to play
around and sort of guess what they are.
Here is what I do know:
Low Fuel Light when tested with 9v
battery:
Wire
Connector
Voltage
White/Purple Stripe
(Power)
Grey
12v
Black
(Ground)
Grey
Ground
Yellow/Black Dot
(Low Fuel)
Grey
12v
All Others
0v/Open
The dash harness reports the same values.
Now, here it gets
odd.
Head Lamp Out Light (tested outside the car with battery):
Wire
Connector
Voltage
White/Purple Stripe
(Power)
Grey
12v
Black
(Ground)
Grey
Ground
Brown/Purple Dot
(Head Lamp)
Brown
12v
All Others
Not Connected
That's all you need to get the Head Lamp LED to light.
Now
when inside the car, and a low beam head lamp is removed, the dash
harness reports the following: (Key must be in the ON position and
headlights must be ON)
Wire
Connector
Voltage
White/Purple Stripe
(Power)
Grey
12v
Black (Ground)
Grey
0v
Red/Black Stripe
(Head Lamp Power)
Grey
12v
Brown (Park Lamp
Power)
Grey
12v
Brown/Purple Dot
(Head Lamp)
Brown
12v
White (Rear Park
Lamps)
Brown
12v
All Others
0v
So why all the extra hot wires?
And why is the White wire showing 12v? When I test that with the
9v battery, the rear tail light LED lights up. But not when plugged
into the harness...weird.
If I get some time, I'm going to look
into this farther. Maybe some wires need to be specifically
grounded too and not just left open.
I do know
that my car's dash harness is missing the White/Red Stripe wire on the
dash harness's brown connector. I also see that in the Ford
Electrical manual, Capris do NOT have the same information circuits as
Mustang's. The Capri actually has wires differentiating the RH/LH brake
lights. The Mustang does not.
To top it off, I don't know
if I have a Capri or Mustang dash harness. Everything appears to
work for me. So I'm going to leave it at that.
If anyone has any
insights, feel free to drop me a line.
UPDATE:
Foxchassis at FEP scanned in some Ford shop manual
pages.
In Conclusion:
The Information center
is pretty easy to shine up and test.
There are still some
unanswered questions on exactly what the dash wiring reports to the
Information Center.
